Product Launch & Reveal Event Production Guide

A product launch at Pier 27 or The Midway lives or dies in the first 90 seconds — the moment your founder walks into a followspot, the reveal cue fires, and the press pool snaps 400 photos before the applause fades. That window requires exact gear math: LED wall pixel pitch matched to your front-row viewing distance, haze density timed to beam definition without choking your videographer, and a cold-spark cue synced frame-accurate to the audio track. This guide breaks down the production rental stack for Bay Area hardware unveils, app launches, and consumer-brand reveals, with the specific fixtures, control infrastructure, and show-caller workflow that separate a clean execution from a blown moment no one will forget for the wrong reasons.

LED Wall Configuration: Pixel Pitch and Viewing-Distance Math

Your P1.9–3.9 LED Rental Screen becomes the hero display in a reveal event — the surface where product renders, demo footage, and brand film play while your CEO speaks downstage. Pixel pitch determines whether the screen looks crisp or pixelated from your closest attendee. P1.9 works for media risers 6–8 feet from the wall; P2.6 covers typical viewing distances of 12–15 feet for mid-room attendees; P3.9 only makes sense beyond 20 feet, like a back-wall display at the SF Design Center's 8,000-square-foot Galleria. For a 200-person launch at 1455 Market rooftop with VIPs in the first three rows, spec P2.6 across a 16×9-foot wall (24 square meters) and confirm your content aspect ratio matches the physical grid — most brand assets arrive in 16:9 video, but if you're tiling a 4×3 wall, you'll letterbox or stretch, both fatal on a reveal beat.

The second variable is brightness. Outdoor or daylight-flooded venues like the Midway's open-air courtyard require 5,000-nit panels to punch through ambient light; indoor venues like Pier 27's Hall A run fine at 1,500 nits with house lighting dimmed during the presentation. If you're also using a Foldable LED Ad Screen for a breakout lounge or product-demo station, treat it as a secondary surface — 2×2 meters on rolling casters, fed via HDMI from a media player looping a sizzle reel while attendees queue for hands-on time.

• Spec P1.9 LED if press or VIP seating sits closer than 8 feet to the screen; P2.6 for general 12–15-foot viewing; P3.9 only for back-wall displays beyond 20 feet.
• Match physical wall aspect ratio to your content — 16:9 for video, custom tiling for vertical portrait displays if your brand asset suite includes mobile-first formats.
• Confirm brightness: 5,000 nits for outdoor or glass-walled daylight venues, 1,500 nits for fully controlled indoor spaces like Pier 27 or August Hall.
• Budget a redundant input source — dual laptops feeding the wall via a failover switcher, because a crashed Keynote deck during the reveal is a $40,000 mistake.
• Preload all content 48 hours before doors, run a full dress rehearsal with audio sync, and mark every cue point in the script with a frame-accurate timecode.

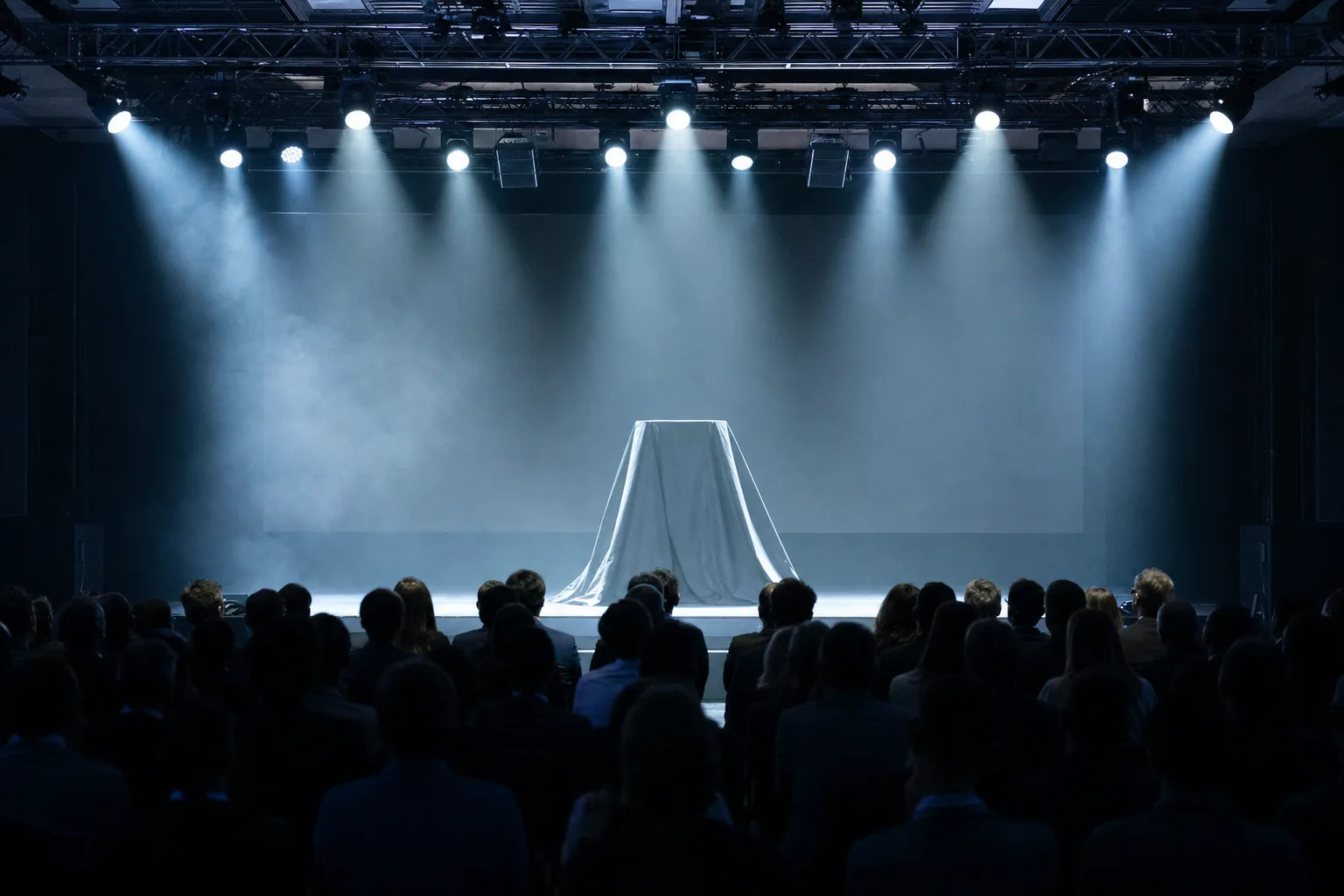

The Reveal Cue: Haze, Blackout, and Three-Second Sync

The reveal itself is a choreographed lighting, effects, and audio event compressed into a 3-second window. The show caller — your technical director or A1 — fires a blackout, triggers a Cold Spark Machine fountain upstage, cues the audio sting (usually a bass hit or brand sonic logo), and brings up the LED wall in one coordinated beat. If any element lags by half a second, the moment reads as sloppy to the 40 tech journalists shooting vertical video for Instagram. Haze is the unsung variable: you need a Haze Machine running low-density atmospheric for 20 minutes before the reveal so beam light from your Full-Color LED Par Light units defines clean rays through the air. Without haze, your dramatic uplight wash just spills onto the ceiling with no mid-air presence.

Sync protocol matters. If you're running QLab for audio playback and a separate DMX board for lighting, the show caller must trigger both from a single GO button or MIDI timecode so the spark fountain, audio, and light cue fire frame-locked. Cold spark machines — especially the Rotating Cold Spark Machine variant — throw 10–12-foot spark columns for 8–12 seconds per charge, so you fire them 1 second before the LED reveal to let the sparks climb to peak height exactly when the product image appears on screen. Rehearse the cue five times during load-in; if the venue has a haze detector, brief the fire marshal and disable the sensor for the cue window, then reactivate it immediately after.

• Run continuous low-density haze 20 minutes before the reveal so the room builds atmospheric without visible fog clouds; adjust density based on HVAC airflow, which varies wildly at open venues like The Midway.
• Fire cold spark fountains 1 second before the LED reveal cue so spark columns peak at the exact moment the product image appears — rehearse this timing with a stopwatch during load-in.
• Lock audio, lighting, and video to a single GO cue in your playback software; a manual three-handed cue from separate operators introduces 200–500ms lag, enough to break the illusion.
• If your reveal includes a physical drape-drop or scrim pull, add a stagehand on a wireless cue light; verbal radio calls are too slow for a 3-second window.
• Confirm the venue allows indoor spark effects — Pier 27 permits them with advance notice; some Design Center floors require a fire watch.

How much haze density do I need without choking the videographer?

Target 15–20% haze density measured by a PAR beam cutting visible rays at 12 feet but still allowing clear facial detail on camera from 8 feet. Run a calibration test during load-in: fire your haze machine for 30 seconds, wait 2 minutes for dispersion, then shoot a smartphone test clip of a person standing downstage center under a single PAR wash. If their face looks soft or haloed on playback, you've overhazed; if the beam behind them is invisible, add another 10-second burst. Most 1000W haze machines like the unit linked above output 3,000 cubic feet per minute, so in a 6,000-square-foot room with 20-foot ceilings, a 45-second blast gives you 8–10 minutes of visible atmosphere before you need a refresh burst. HVAC is your enemy — The Midway's outdoor courtyard bleeds haze in 3–4 minutes; Pier 27's Hall A holds it for 12 minutes if you kill the roof vents during the cue.

Speaker Staging: Followspot Pickup and Downstage Marks

Your founder or product lead walks on from stage right, hits a mark 8 feet downstage of the LED wall, and delivers a 6-minute pitch to 200 attendees. The Followspot Light operator picks them up 2 seconds into the walk, holding a tight iris to isolate them from the ambient wash. If you're using a podium, position it stage-left offset so the speaker can gesture toward the LED wall without turning their back to the press riser. If they're clicker-only (no podium, handheld advance remote), mark the downstage center sweet spot with a 2-inch spike tape cross in a color they can see in dim blue pre-show work light — never white tape, which glows under UV and reads on camera.

Followspot control is manual, not automated; your operator sits house-right balcony or on a 6-foot ladder at the mix position, cueing on a radio call from the stage manager. Specify a 330W–440W spot for venues under 80 feet deep; anything larger and you need a 575W unit to punch brightness across distance. For multi-speaker panels, run two followspots so you can cross-fade between presenters without a blackout gap. If your stage includes a Portable Stage Platform, build it 24–32 inches high so the seated audience clears sightlines; taller than 36 inches and you need stair units with ADA-compliant rails, which eat stage-left wing space.

• Mark downstage center with a 2-inch spike tape cross in blue or black — visible to the speaker under dim work light, invisible on video. Never use white or yellow tape, which reflects and reads as a floor artifact in press stills.
• Position the podium stage-left or stage-right offset, not dead center, so the speaker can gesture toward the LED wall without turning their back to the front row or photo riser.
• Run a rehearsal walk-on with the actual speaker to confirm followspot pickup timing — 2 seconds after they enter frame from the wing, tightening iris as they hit the mark.
• If you're staging multiple speakers, use two followspots on opposite sides of the room so you can cross-fade between people without a dark gap; coordinate via radio with the show caller.
• Keep the stage deck 24–32 inches high for seated sightlines; taller than 36 inches triggers ADA stair requirements and eats wing space for speaker holding positions.

Press Riser and Content-Capture Lighting

Photo and video teams need a dedicated riser 16–20 feet from stage center, elevated 18–24 inches so shooters clear attendee heads. Most Bay Area venues let you build a 4×8-foot riser from modular platforms, but confirm load ratings — a riser holding six photographers with tripods and 400mm lenses carries 1,200+ pounds. Lighting for content capture runs cooler than stage wash; specify 3200K–4000K color temperature on your LED PARs so skin tones read neutral on mirrorless cameras shooting at 5600K daylight balance. If your reveal includes product close-ups — a hardware demo on a pedestal or a hands-on station — add a 5600K key light overhead to kill shadows without color contamination.

Brief the venue 72 hours before load-in on B-roll access. Videographers will want roaming shots during the reception, which conflicts with attendee flow if the space is under 3,000 square feet. At tight venues like August Hall, designate a 6×6-foot B-roll zone stage-right where a camera operator can shoot the LED wall and speaker simultaneously without blocking the press riser sightline. If you're using Aluminum H-Frame Truss for an overhead lighting grid, position it 14–16 feet above deck so downlight doesn't cast hard shadows on presenters; lower than 12 feet and you'll hotspot the podium, creating a blown-out forehead in every photo.

• Build the press riser 16–20 feet from stage center, elevated 18–24 inches, with a 4×8-foot footprint; confirm the platform load rating supports 1,200+ pounds if six photographers deploy tripods simultaneously.
• Set LED PAR color temperature to 3200K–4000K for skin tones that read neutral on cameras shooting daylight balance; avoid the default 5600K stage-wash preset, which casts blue-green on most mirrorless sensors.
• Designate a 6×6-foot B-roll zone if the venue is under 3,000 square feet, so roaming videographers don't block attendee sightlines or the static press riser during the presentation.
• Position overhead truss grids 14–16 feet above deck; lower than 12 feet and you'll create forehead hotspots on speakers, which blow out in stills and require post correction.

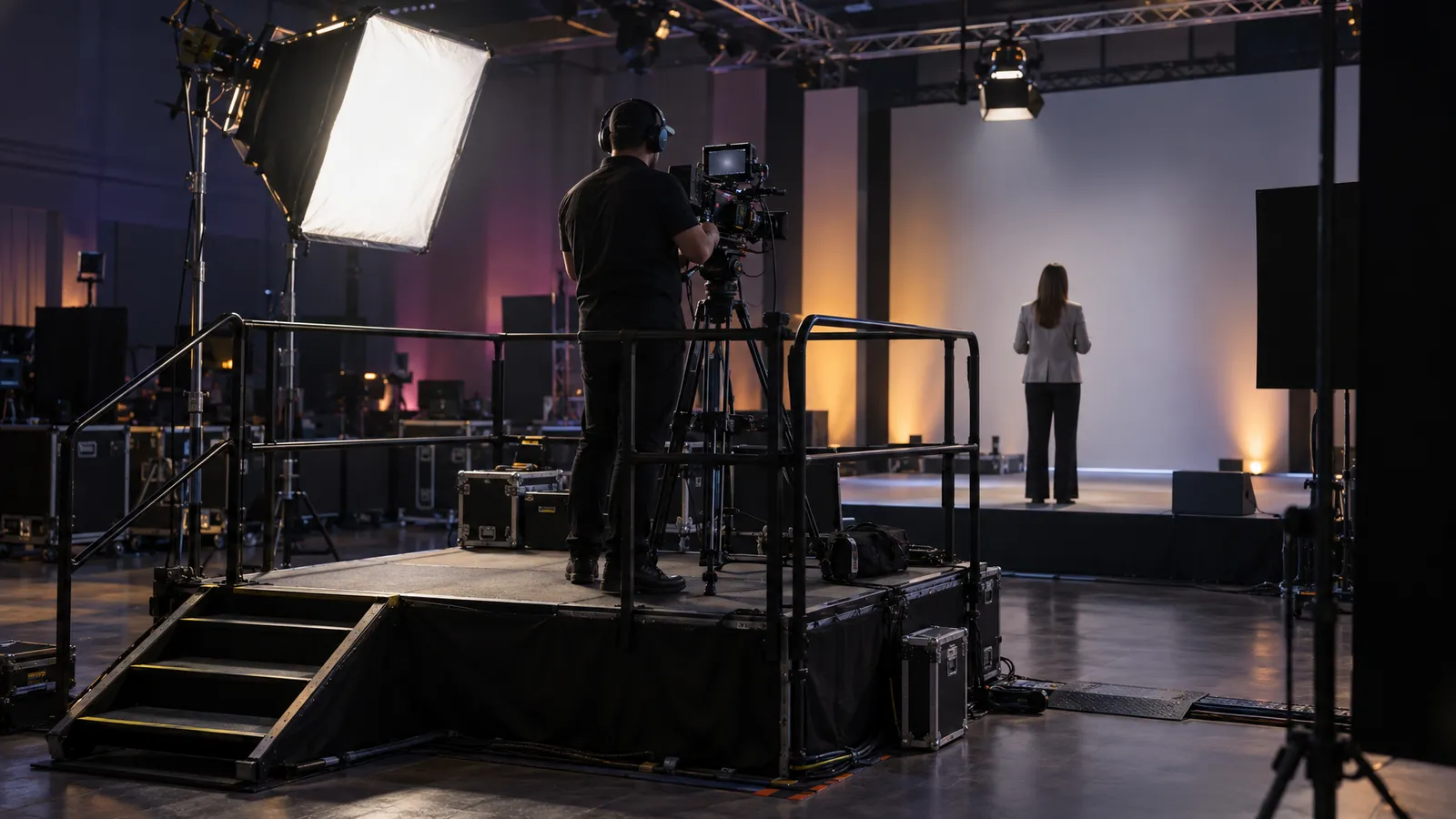

• Run a camera test during load-in: shoot a 10-second clip of a stand-in under stage wash, check playback for color cast and shadow depth, then adjust PAR intensity and kelvin before doors.

FAQ: Product Launch Event Production

What pixel pitch do I need for a 12-foot LED wall viewed from 10 feet?

P2.6 is the correct spec for a 10–12-foot viewing distance. P1.9 is overkill unless you have front-row VIPs or press sitting closer than 8 feet; P3.9 will look grainy and pixelated from that range. If your wall is also serving as a background for a hands-on product demo where attendees stand 4–5 feet away, step down to P1.9 for that zone and tile a secondary P2.6 wall for the main presentation area. Confirm the rental house can deliver matching cabinets in both pixel densities so the seams align if you're mixing pitch across a single wall surface.

How do I sync cold spark machines to a lighting cue?

Most cold spark machines accept a DMX trigger via XLR input, so patch them to your lighting console as fixtures on a dedicated universe. Assign each machine a DMX address, then program a cue that fires the spark channel to full (255) simultaneous with your blackout-to-reveal transition. The spark ignition takes 200–300ms to climb to visible height, so offset the DMX trigger 1 second before your LED wall fade-up so the sparks peak exactly when the product image appears. If you're using a rotating variant, program a slow pan during the 8-second burn so the column sweeps stage-left to stage-right, adding motion to the static reveal frame.

Where should the show caller sit during the event?

Position the show caller at front-of-house mix, typically center-room 40–60 feet from stage, with direct sightline to the presenter, LED wall, and press riser. They need a wired headset to the stage manager, lighting board operator, and A1 (audio lead), plus a monitor feeding the confidence screen so they can read the script and timecode in real time. Never bury the show caller backstage or in a green room; they lose visual context for cueing followspot pickups, haze bursts, and the reveal blackout. At smaller venues under 2,000 square feet where there's no mix position, put them stage-right wing on a stool with a clear sightline through the wing curtain.

What's the load-in timeline for a 200-person product launch?

Budget 8 hours for a clean load-in at a raw venue like Pier 27 or the SF Design Center. Hour 1: truck unload and stage build. Hours 2–3: LED wall rigging, power distribution, and truss grid assembly if you're flying overhead lighting. Hours 4–5: lighting focus, haze calibration, and followspot positioning. Hour 6: audio setup and playback sync. Hour 7: full tech rehearsal with the reveal cue, speaker walk-on, and B-roll camera tests. Hour 8: polish and contingency buffer. If the venue has union labor requirements (IATSE in most SF convention spaces), add 30% to the timeline for crew breaks and jurisdictional handoffs between electrics, rigging, and AV techs.

Do I need a fire permit for indoor cold spark effects?

Not universally, but confirm with the venue 10 days before the event. Pier 27 allows cold spark with advance notice to the Port of San Francisco; the SF Design Center requires a fire watch if you're using more than two machines simultaneously; The Midway permits them outdoors without restriction but bans them in the indoor hall. Cold spark machines burn titanium powder at 200°F, well below the ignition point of fabric or wood, but the visual resembles pyro enough that fire marshals treat it as a special-effect trigger. File a one-page description of the effect with the venue's ops team, including machine model, duration, and cue placement in the show script, and budget $150–$300 for a fire-watch labor call if required.
