Conference Room AV Setup for 10-50 People

Why Room Size Changes Everything About Your AV Setup

A conference room built for 10 people needs completely different gear than one built for 50, and treating them the same is the most common mistake we see. Buy a single all-in-one video bar sized for a small huddle room and put it in a 50-person space, and half the room won't be heard on the call. Go the other direction, drop a ceiling mic array meant for 50 people into a 10-person room, and you'll pick up HVAC noise and hallway chatter that a simpler setup would have avoided.

The right approach is to size the microphone pickup pattern, speaker coverage, and camera field of view to the actual room dimensions and seating count, not to a generic "conference room package." A 10-person room is usually 12-16 feet across a single table. A 50-person room is closer to a small training room or divisible ballroom section, often 30-40 feet deep with rows or a boardroom-plus-gallery layout.

This guide breaks the recommendations into three tiers: small (10-15 people), medium (16-30 people), and large (31-50 people), covering what microphone type, speaker configuration, and camera setup fits each, plus what it costs to rent in the Bay Area. If your meetings involve a mix of in-room and remote attendees dialing in from home or another office, that's the scenario every recommendation below is built around, since pure in-room meetings need far less gear.

Small Rooms (10-15 People): Video Bar and Ceiling Mic Combo

For a room seating up to 15 people around one table, an all-in-one video bar is the simplest and most reliable choice. These units combine a wide-angle camera, a beamforming microphone array, and speakers into a single bar that mounts under or above the display. Poly Studio X and Logitech Rally Bar are the two most common units we deploy at this size, and both handle a 14-16 foot table without additional microphones.

The video bar's built-in mic array typically covers 15-20 feet of pickup range, which is enough for most single-table rooms. If your table runs longer than that, or the room has an unusual shape (an L-shape or a room with a breakout nook), add one or two wireless tabletop boundary mics to fill the dead zones rather than upgrading to a full ceiling array, which is overkill and roughly triples the cost for this room size.

• Video bar (camera + mic + speaker, all-in-one): $150-$250/day
• Additional wireless tabletop mic (if needed): $40-$60/day each
• Display (55-65" or dual displays for room + remote gallery view): $100-$180/day

A small room setup like this typically runs $250-$450/day fully equipped with delivery and basic setup. It's the fastest and cheapest tier to deploy, usually under two hours from delivery to a working test call, and it's what we recommend for most standard meeting rooms unless the room has acoustic problems like hard walls, high ceilings, or glass on multiple sides.

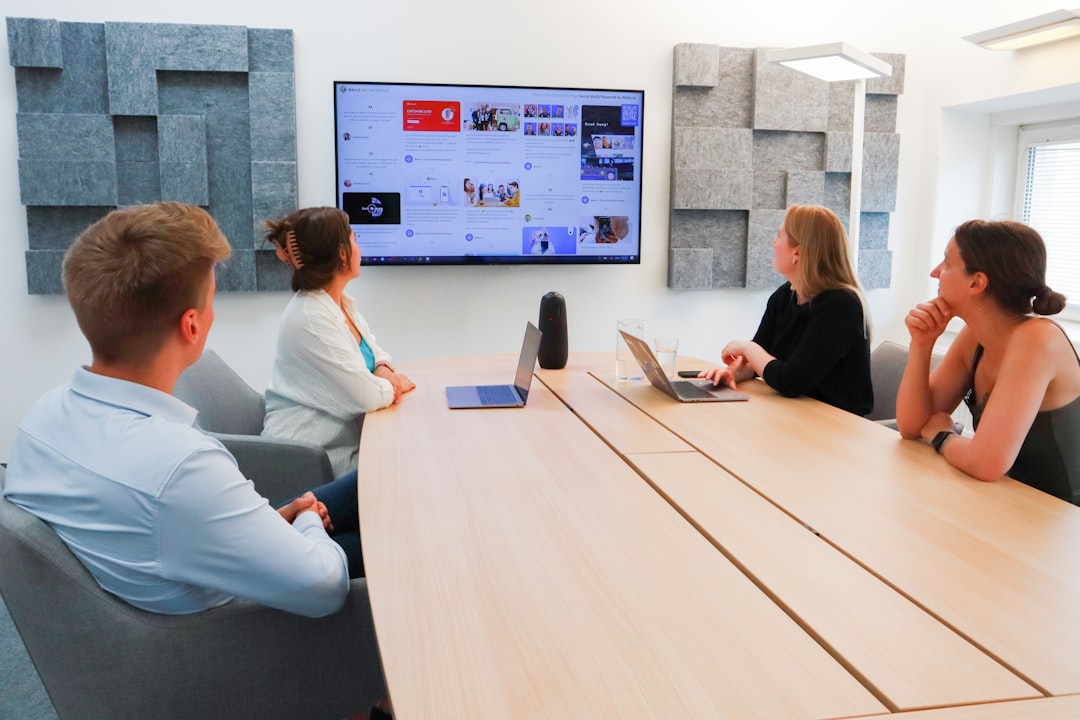

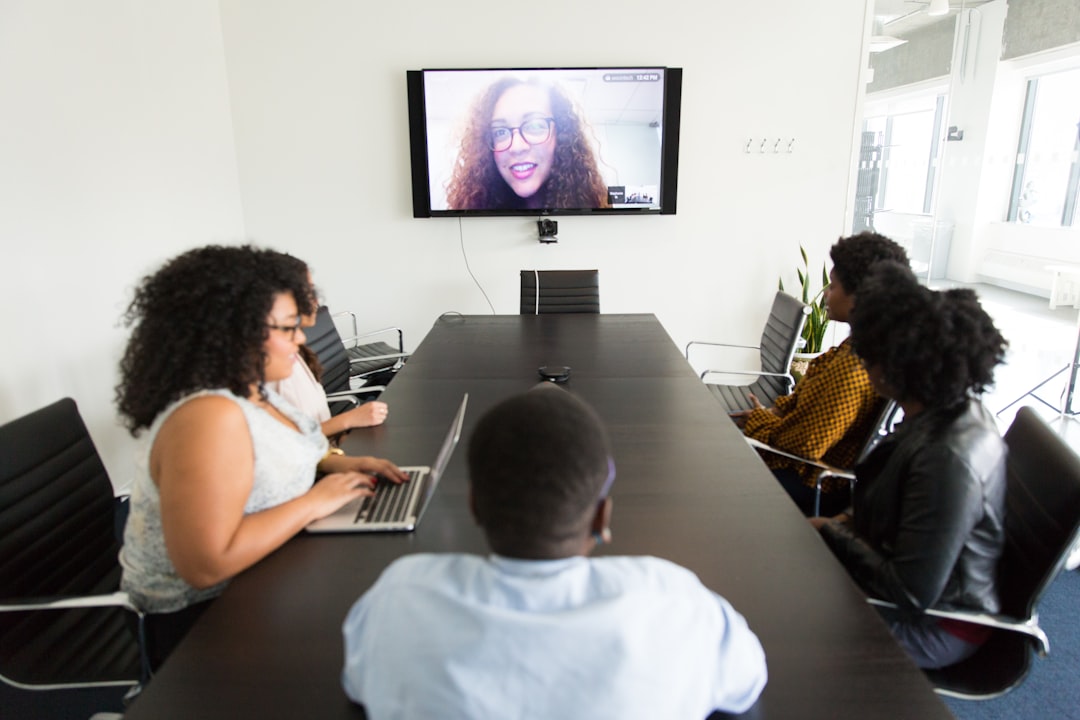

A properly sized video bar setup keeps every seat at the table audible on the call.

Medium Rooms (16-30 People): Ceiling Mics and a Dedicated PA

Once a room grows past 15 seats, a single video bar's mic array starts missing voices at the far end of the table or in a second row of seating. This is the tier where a ceiling microphone array becomes worth the added cost. Ceiling mics (Shure MXA910 or Sennheiser TeamConnect Ceiling are the common picks) mount overhead and use beamforming to pick up voices anywhere in the room without anyone needing to lean toward a table mic.

Pair the ceiling mic with a separate camera, usually a PTZ camera that can be preset to a wide "whole table" shot and a tighter "speaker" shot, since a video bar's built-in camera is rarely wide enough for a room this size. You'll also want dedicated speakers rather than relying on the video bar's small built-in drivers. A pair of ceiling or wall-mounted speakers, tied into the same audio processor as the ceiling mic, gives even coverage without anyone straining to hear remote participants.

• Ceiling microphone array (covers up to ~20x20 ft room): $300-$450/day
• PTZ camera with preset positions: $200-$350/day
• Wall/ceiling speaker pair with audio processor: $200-$300/day, see our commercial PA speaker rental options for room-specific sizing
• Display or dual displays: $150-$250/day

Expect $850-$1,350/day for a fully equipped medium room, including a technician for initial setup and a test call before the meeting starts. This tier is common for department-level all-hands, client presentations, and training sessions where the room regularly mixes in-person and remote attendees.

Large Rooms (31-50 People): Multi-Zone Audio and Multi-Camera Coverage

At 31-50 people, you're usually looking at a divisible ballroom section, a large training room with rows, or a boardroom with a gallery of extra seating around the perimeter. A single ceiling mic array can still work here, but you'll often need two zones, one over the main table or front rows and one over the back seating, tied together through a digital signal processor (DSP) that manages the audio mix so remote attendees hear one clean feed instead of two competing zones.

Camera coverage needs to expand too. One PTZ camera on the presenter or head of the table plus a second wide-angle camera covering the full room gives remote attendees a real sense of who's in the room, similar to the two-camera approach used in hybrid town hall setups, just scaled down. A wireless handheld or lavalier mic for anyone standing to speak or present rounds out the audio picture, since ceiling mics alone can struggle with someone walking while talking.

• Two-zone ceiling mic array with DSP: $600-$900/day
• Two PTZ cameras with operator or preset switching: $500-$750/day
• Wireless handheld/lavalier mic (1-2 units): $80-$150/day
• Speaker system sized for 30-50 person room: $350-$550/day
• Large display or projector setup: $250-$450/day

Fully equipped, this tier runs $1,800-$2,800/day including a technician on-site through the meeting, not just for setup. At this size, we always recommend a technician stay for the full event rather than a drop-off, since a DSP or camera preset issue mid-meeting is much harder to troubleshoot remotely than in a small huddle room.

If your 50-person room regularly hosts town halls or all-hands rather than standard meetings, our full AV equipment catalog has additional lighting and staging options worth bundling in.

Larger rooms need multi-zone audio coverage so every seat, not just the head of the table, comes through clearly on the call.

Getting the Room Acoustics Right Before You Add Gear

Good microphones can't fix a room with bad acoustics, and this is where most conference room AV budgets go to waste. Rooms with hard floors, bare walls, high ceilings, or floor-to-ceiling glass on two or more sides create echo and reflection that no amount of extra microphone gain will solve. Adding a second ceiling mic to compensate for a room's natural echo usually makes the problem worse, not better, since both mics pick up the same reflections.

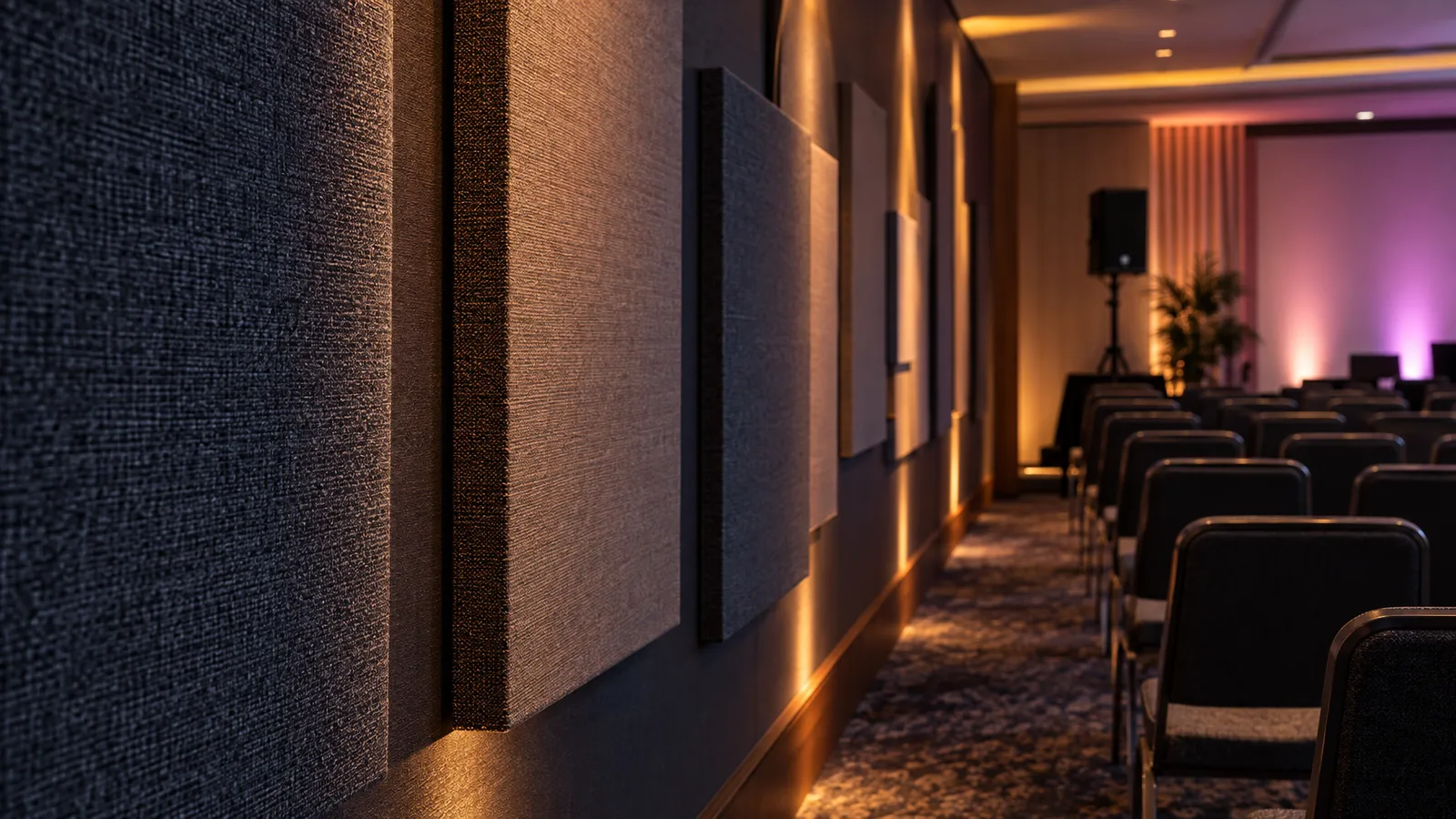

Before renting equipment for a room you haven't used for video calls before, do a quick clap test: stand in the middle of the room and clap once. If you hear a ringing tail after the clap rather than a single sharp sound, the room has an echo problem that acoustic treatment (wall panels, ceiling baffles, or even heavy curtains) should address before you invest in premium microphones. A $300/day ceiling mic array in an untreated glass conference room will still sound worse than a $150/day video bar in a room with carpet and soft furnishings.

If acoustic treatment isn't practical (many leased office spaces can't modify walls or ceilings), a DSP with echo cancellation and noise suppression can compensate, but budget for that as a separate line item, typically $150-$300/day added to whichever tier above fits your room size. We do a quick room assessment as part of every large-room booking specifically to catch this before equipment gets delivered rather than after.

Frequently Asked Questions

What's the minimum AV setup for a 10-person conference room?

A single all-in-one video bar (camera, microphone array, and speaker combined) covers a 10-person room with one table. Add a wireless tabletop mic only if the table runs longer than 15 feet or the room has an unusual shape.

Do I need a ceiling microphone for a mid-size conference room?

Once a room seats more than 15 people, yes. A single video bar's mic array typically covers 15-20 feet, which starts missing voices at the far end of a larger table or in a second row of seats. A ceiling array with beamforming picks up the whole room evenly.

How much does it cost to rent AV equipment for a 50-person conference room?

A fully equipped 31-50 person room with two-zone ceiling mics, multi-camera coverage, dedicated speakers, and an on-site technician typically runs $1,800-$2,800/day in the Bay Area. Smaller rooms (10-15 people) run $250-$450/day, and medium rooms (16-30 people) run $850-$1,350/day.

Why does my conference room have echo on video calls even with good microphones?

Echo usually comes from the room's acoustics, not the microphone. Hard floors, bare walls, high ceilings, and glass surfaces cause sound reflections that better mics can't fix and sometimes make worse. Try a clap test: if you hear a ringing tail after clapping once, the room needs acoustic treatment or a DSP with echo cancellation before the microphone gear will perform well.

Can I use the same AV setup for both small meetings and large all-hands in one room?

Only if the room is divisible or the equipment is scalable. A two-zone ceiling mic system with a DSP can usually handle both a small daily-use configuration and a full-room all-hands, but a single video bar sized for 10-15 people will not scale up to a 50-person layout without missing coverage.
