Car Show & Auto Reveal Lighting Setup Guide

A product reveal without theatrical lighting feels like handing a customer a brochure in a parking garage — the car is there, but the emotion isn't. Bay Area dealership marketing teams and custom-shop owners running model launches at venues like Cow Palace, the San Mateo Event Center, or showroom floors need lighting that treats the vehicle as sculpture: angles that carve body lines, beams that lift the eye, and reveal cues tight enough that the light burst lands before the drape hits the floor. This guide walks through the four lighting zones that turn a static display into a controlled visual event, from the initial walk-up moment through the reveal sequence to sustained display after the curtain drops.

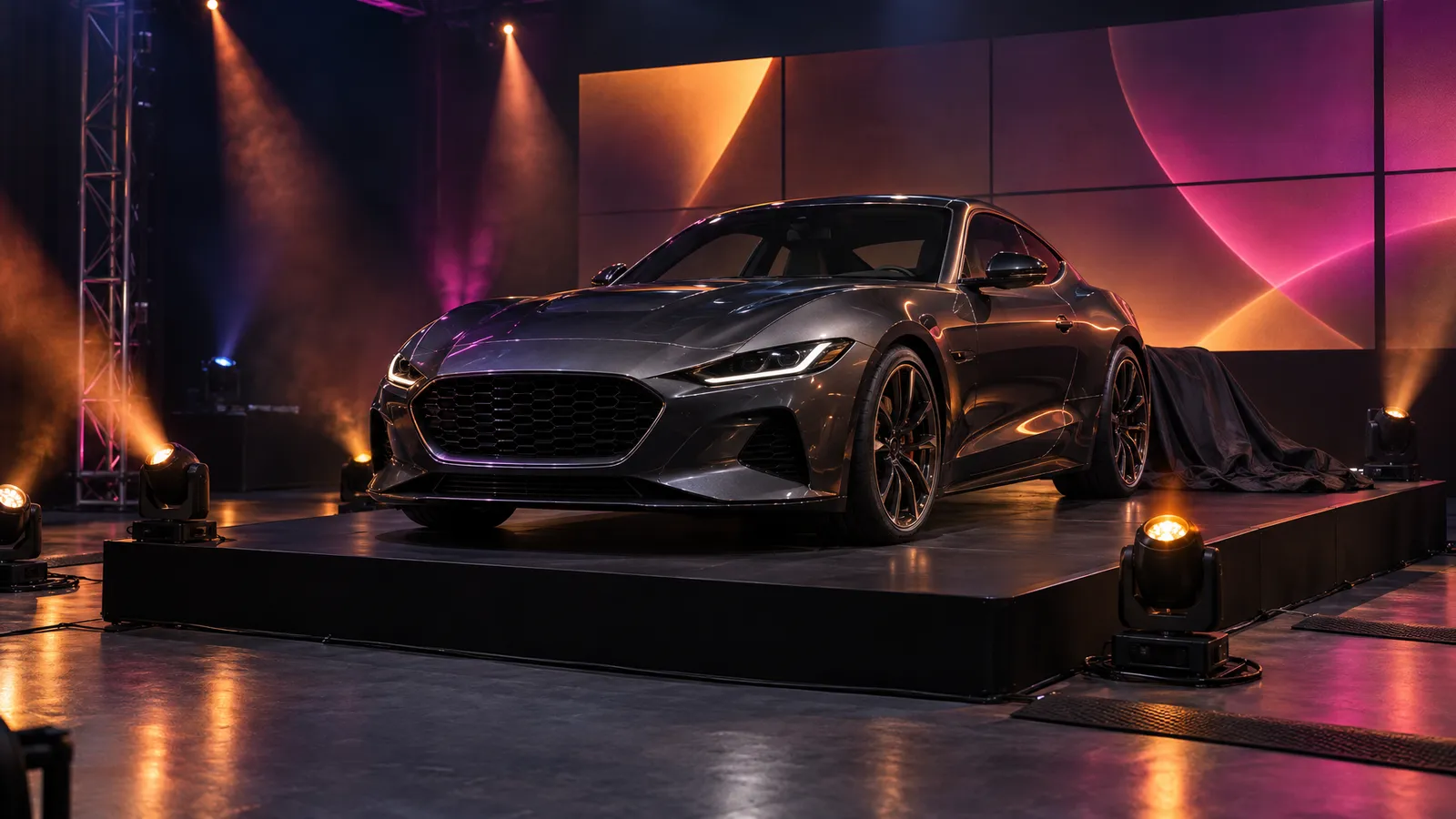

The Reveal Cue: Beam Synchronization and Atmospheric Prep

The moment the drape pulls, you have 1.5 seconds to deliver drama — longer and the crowd's eyes wander, shorter and the gear looks thrown together. The cleanest reveal sequences combine three synchronized elements: aerial fan beams sweeping upward from behind the vehicle, haze pre-loaded 90 seconds before the cue so particulate settles evenly, and cold spark machines positioned at the base of the platform firing for exactly 8 seconds. Each element needs individual control, so you're running a minimum of three DMX universes and one dedicated show caller with a hard-count rehearsal 60 minutes before doors.

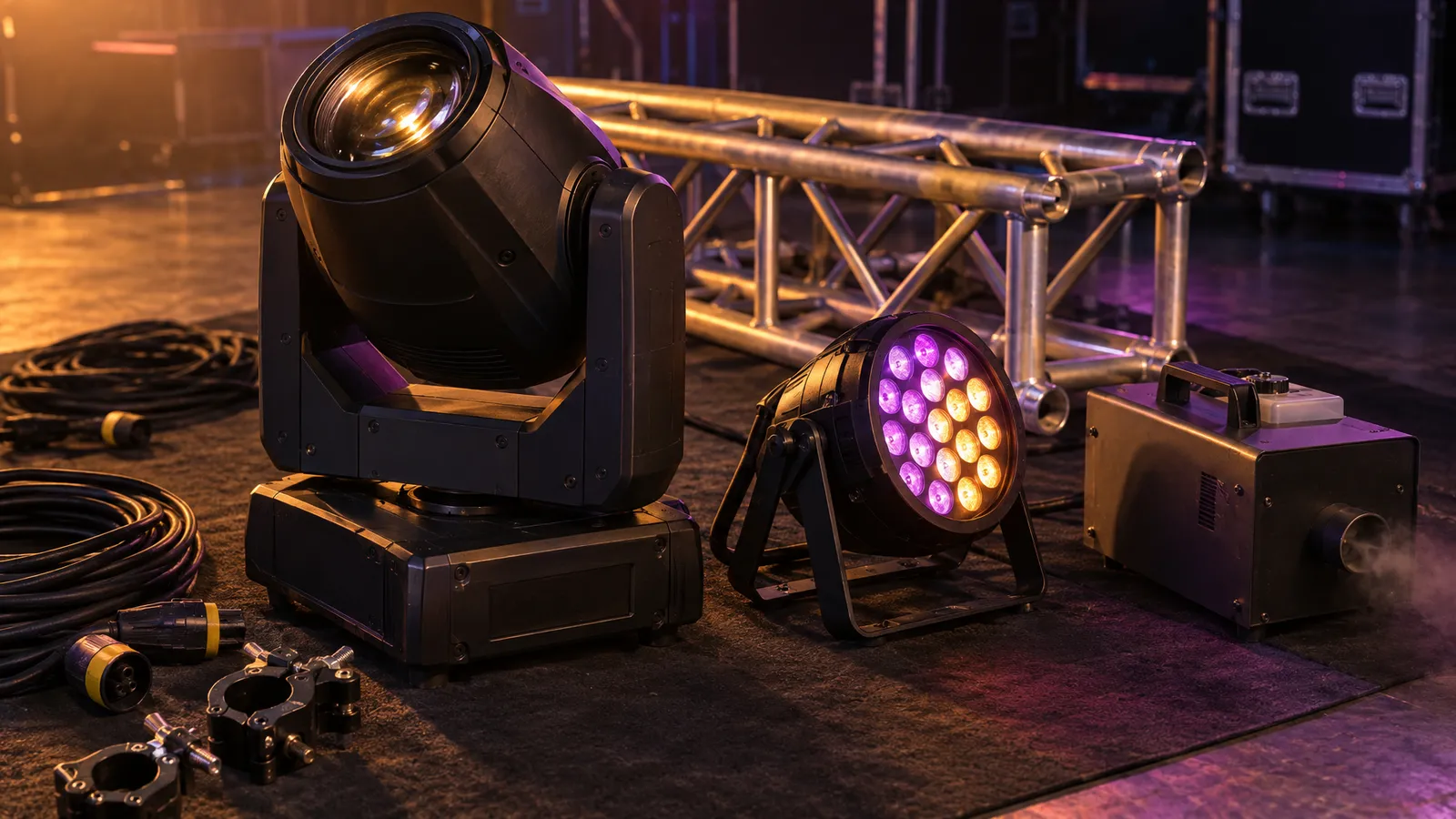

For the beam fan, four 380W beam moving heads positioned upstage in a 10-foot line deliver the concentrated punch you need — wider spaced fixtures read as separate lights rather than a cohesive fan. Mounting height matters: fixtures at eight feet create a canopy effect, but anything below six feet points beams into the crowd's faces and kills the focus on the car. Haze density is where most in-house teams fail; a 1000W atmospheric haze generator running at 60% output for 90 seconds before the cue, then cut completely, leaves enough particulate for beam visibility without the fog-machine effect that makes everything look like a Halloween store.

• Four beam moving heads: 380W output minimum, mounted eight feet high in a tight upstage line; tilt programmed to sweep 0° to 75° over 1.2 seconds
• Haze timing: Load atmosphere 90 seconds pre-cue at 60% output, then cut; never run haze during the reveal itself
• Cold spark placement: Two units at platform base, angled 15° outward, 8-second duration synced to beam peak — indoor-safe spark fountains require 20-amp dedicated circuits
• Drape mechanics: Use a motorized track with variable speed control; 1.5-second drop time keeps reveal tight without looking rushed
• Show caller rehearsal: Hard-count run-through 60 minutes before doors; verbal "stand by... go" timing with console operator eliminates guesswork
• DMX universe allocation: Beams on Universe 1, spark machines on Universe 2, haze and house lights on Universe 3 — keeps cue stacks clean

Display Lighting for Parked Cars: Angle and Color Temperature

Once the reveal sequence ends, the vehicle sits under display lighting for the next two hours — or two days if it's a multi-day show at the San Mateo Event Center. Flat overhead fluorescents or generic LED pars positioned directly above the car create a lifeless wash that flattens body contours and makes metallic paint look matte. The correct approach uses spot-wash moving heads positioned at 30° lateral angles, 12 feet from the vehicle, with 3200K color temperature dialed in to match the warmth of halogen showroom lighting that buyers associate with premium environments.

For a single vehicle display, two LED spot-wash moving heads with CMY color mixing provide enough output and flexibility to adjust focus as the car rotates or as ambient daylight shifts in windowed showrooms. Each fixture should be gelled to 3200K using the CTO channel, then locked at 15° beam angle to create a defined pool without hard shadows. If you're lighting a row of six cars at Cow Palace for a custom-shop showcase, bump that to eight fixtures total and add 18-LED RGBW wash lights as fill from behind to separate the vehicles from the background drape.

How Much Light Do I Need for a Metallic Paint Job?

Metallic and pearl-finish paint requires 20–30% more light output than matte colors to achieve the same perceived brightness, because the reflective particles scatter light rather than absorbing it evenly. A matte-black custom build looks correct at 1200 lux measured at the hood centerline, but a metallic silver Tesla needs 1600 lux from the same angle to avoid looking dull. Use a spot meter during setup — phone apps are useless here — and measure at the hood, door panel, and rear quarter to confirm even coverage. If one panel reads 400 lux lower than the others, adjust fixture angle or add a fill par rather than cranking overall intensity, which will blow out highlights on chrome trim.

• Two spot-wash moving heads per vehicle: Positioned at 30° lateral angles, 12 feet away, locked at 15° beam with 3200K CTO color correction
• Lux targets: 1200 lux for matte finishes, 1600 lux for metallic/pearl paint measured at hood centerline with a calibrated spot meter
• Fill lighting: RGBW pars at 40% intensity from behind the vehicle separate it from background drape and eliminate harsh shadows under wheel wells
• Fixture lockdown: Once angles are set, physically lock pan/tilt motors and disable DMX control to prevent accidental movement during multi-day shows
• Color consistency: All fixtures must match within 100K color temperature; mixed LED and tungsten sources create visible banding on curved surfaces

Brand Graphics on LED Walls: Static vs. Animated Content

A backing LED rental screen running brand animations transforms a reveal from a car on a platform into a coordinated brand moment, but only if content timing matches the physical cue sequence. The most common failure is animated content that loops every 15 seconds while the reveal itself takes 12 seconds — the logo wipe happens before the drape hits the floor, and the timing reads as sloppy. For a single-vehicle launch, configure the screen to 12m² (roughly 3.5m wide by 3.5m tall), mount it directly upstage of the car at eight feet height, and program a static brand lockup to display during walk-up, then trigger a 12-second animated sequence synced to the drape motor's "go" cue.

Pixel pitch matters more than total screen size for close-viewing automotive reveals. A P3.9 screen works for crowds viewing from 15 feet or farther — typical for a Cow Palace floor layout — but dealership showroom reveals where buyers stand six feet from the screen need P1.9 pitch to avoid visible pixel grid on close inspection. Content should be rendered at the exact pixel dimensions of your rented screen; a 1920x1080 video file stretched to fit a 1440x1440 panel looks soft and breaks the premium impression you're building. Budget $600–$1200 for screen rental depending on size and pitch, and add another $400 if you need a dedicated media server with timecode sync to lighting console.

• 12m² screen configuration: 3.5m x 3.5m works for single-vehicle reveals; 24m² for multi-car showcases at San Mateo Event Center
• Pixel pitch selection: P3.9 for viewing distances 15+ feet, P1.9 for dealership showrooms with 6-foot crowd proximity
• Content timing: Static brand lockup during walk-up, 12-second animated sequence triggered by drape motor cue, then return to static or slow loop
• File specs: Render content at exact screen pixel dimensions (not 1920x1080 unless screen is that ratio); ProRes 422 HQ codec minimum for gradient smoothness
• Media server sync: Timecode link between video playback and lighting control console ensures logo wipe lands frame-accurate with beam peak
• Brightness calibration: Set screen to 800–1000 nits for indoor venues; higher values create distracting glare on car paint and crowd faces

Outdoor Lots vs. Indoor Showrooms: Power, Weather, and Permitting

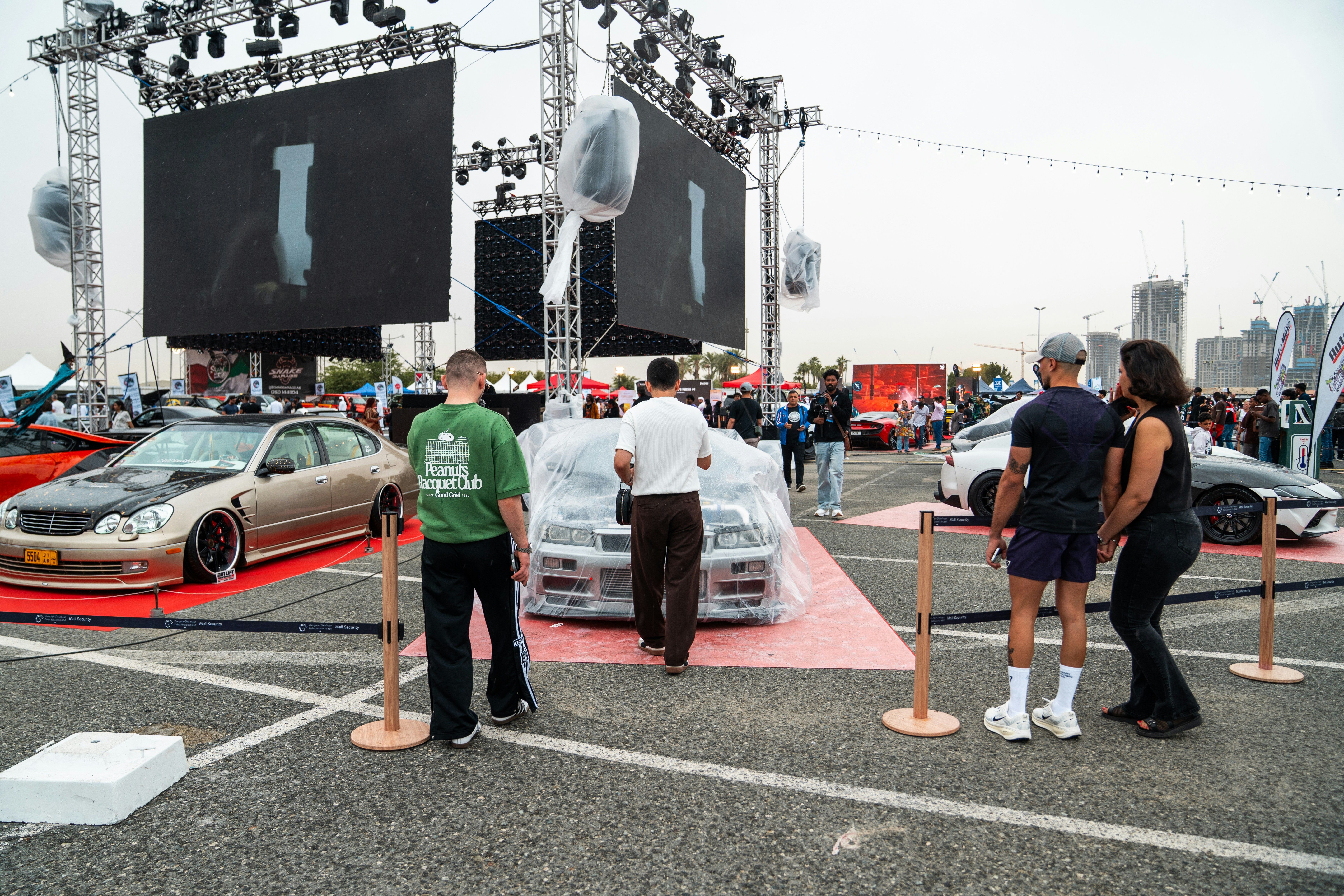

An outdoor reveal at a custom shop's parking lot in San Leandro or a dealership's front apron in Walnut Creek requires fundamentally different infrastructure than an indoor showroom event. Outdoor setups need generator power — most dealership lots provide 20-amp convenience outlets that trip the moment you fire haze and moving heads simultaneously — and San Francisco permits require 72-hour advance notice for any generator over 10kW placed on a public sidewalk or street. Weather protection means road cases stay closed until 30 minutes before the event, and all rigging uses aluminum H-frame truss with sandbag ballast rated for 15mph wind, not ground-supported pipe that tips in a gust.

Indoor showrooms eliminate weather variables but introduce reflected-light problems: floor-to-ceiling glass windows at Peninsula dealerships turn every beam fixture into a dozen mirrored beams, and polished concrete floors bounce 40% of your light back up into the car's undercarriage, creating an unnatural glow. The solution is to add blackout drape on the upstage wall to kill reflections and use barn doors on all floor-positioned pars to flag light off the floor surface. For a multi-day show at Cow Palace, plan for 208V three-phase distro and hire a licensed electrician for tie-in — venue won't let you tap their house power without a signed load sheet and proof of $2M liability coverage.

• Generator sizing: 15kW minimum for four beam heads, haze, LED wall, and spark machines; 25kW for shows adding truss-mounted video or eight+ moving heads
• SF permit requirements: 72-hour advance notice for generators over 10kW on public property; noise ordinance limits runtime to 8am–8pm in residential zones
• Outdoor rigging: H-frame truss with 50lb sandbag ballast per leg, rated for 15mph sustained wind; no ground-supported pipe without engineered anchoring
• Indoor reflection control: Blackout drape on glass walls, barn doors on floor pars to flag light off polished concrete — eliminates undercarriage glow
• Venue power verification: Confirm 208V three-phase availability at Cow Palace and San Mateo Event Center 14 days before show; single-phase 120V won't support full rig
• Insurance and licensing: $2M general liability required for venue tie-in; licensed electrician signature on load sheet mandatory for 208V distro at most Bay Area event centers

FAQ: Car Show & Auto Reveal Lighting

How far in advance should I book lighting for a dealership product launch?

Book 45–60 days out for a single-vehicle showroom reveal with standard gear, 90 days for multi-day shows at Cow Palace or San Mateo Event Center that need custom rigging or LED wall integration. Peak season (September through November for model-year launches) compresses availability, and popular beam moving heads often book out three weeks ahead. If your reveal includes synchronized video content, add another two weeks to allow time for content creation, export, and timecode programming — rushed content looks rushed, and there's no lighting trick that fixes a poorly timed logo animation.

Can I use the dealership's existing showroom lights for a reveal event?

Existing showroom lighting works for ambient fill but never for the reveal itself or hero display lighting. Dealership fluorescents and overhead LEDs are designed for even illumination across 4000 square feet of inventory, not to carve body lines on a single vehicle or create a theatrical moment. The color temperature is usually 5000K+ (cool white) which makes warm paint tones look washed out, and there's no way to dim or cue them in sync with a drape pull. Plan to supplement with rented moving heads and control them separately; you can leave house lights at 30% during the reveal, then bring them to full after the sequence ends.

What's the difference between a beam moving head and a spot-wash fixture?

A beam moving head produces a tight, parallel shaft of light — the aerial fan effect you see cutting through haze during a reveal. The beam stays narrow even at distance, creating dramatic visible shafts but very little usable light on the car itself. A spot-wash moving head has a zoom range (typically 8° to 50°) and produces a broader, softer pool of light that's ideal for illuminating the vehicle after the reveal. Most car shows need both: beams for the reveal cue, spot-washes for sustained display lighting. Trying to use beams as display lights leaves the car underlit with harsh shadows; using spot-washes for the reveal cue eliminates the aerial drama entirely.

How do I prevent glare on the windshield during display lighting?

Windshield glare happens when a light source sits within the reflective angle of the glass relative to the audience's viewing position — usually a moving head positioned too low and too far upstage. The fix is to move fixtures to a 30° lateral angle rather than straight-on, and raise them to at least eight feet so the reflected hot spot bounces up into the ceiling rather than into the crowd's eyes. If you're locked into a specific fixture position because of venue rigging, add a 1/4 CTO gel and drop intensity 20%, which softens the reflection enough to make it less distracting. For windshields with heavy tint, the problem inverts — you'll need more output to see through the glass into the interior.

Do I need a lighting operator on-site during the event, or can the sequence run automated?

A single-vehicle reveal with a pre-programmed 30-second cue sequence can run automated from a console with a "go" button, but you still need a show caller on headset to coordinate the drape pull, spark fire, and beam cue so they land within the same 1.5-second window. For multi-day shows with rotating vehicle displays or live presentations where lighting cues follow a speaker's ad-lib pacing, hire a console operator for the full run — budget $600–$900/day for an experienced board op in the Bay Area. Automated sequences fail the moment someone walks on stage early or the emcee stretches a 90-second intro to four minutes; a live operator adjusts in real time and keeps the show looking intentional.
